    ALLSCANNER Tester

     It is the latest automotive diagnostic tool. It was designed by the new international standard, it can identify different vehicles intelligently, and it can support all vehicles in the market. It adopt wireless communication module of WIFI 802.11b/g, it can be used with Laptop or PDA. The diagnostic software can be operated under the platform of Windows and WinCE. (TOYOTA / LXUES TIS GTS and HONDA GNA600)

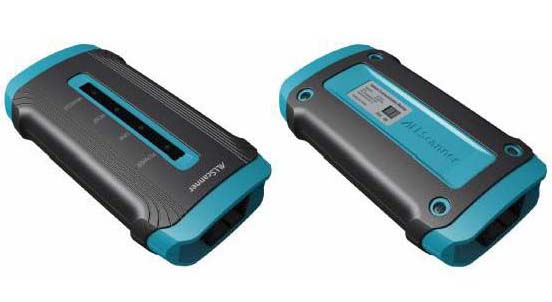

    Product's appearance as below:

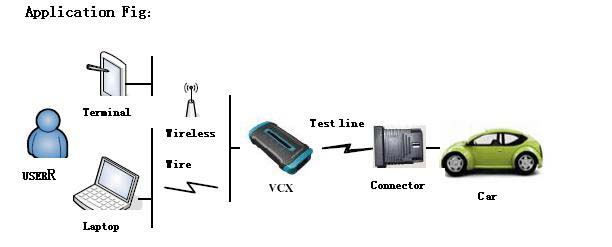

    Handheld Terminal


     PDA or Handheld touch screen display, WinCE platform.

    Laptop
     Wireless Laptop, Windows platform.

    VCX
     Diagnostic box, the communicate bridge between mainunit and vehicles.

    Connector
     Connect to vehicle diagnostic socket.

    Wire connect
     RS232 serial port,115200bps

    Wireless connect
     WIFI 802.11b/g£¬Connect to WIFI network.


    Hardware Specification
    ITEM                                                 State
    CPU                                                16 digit Dual Cell specialize CPU
    RAM                                                 64KB RAM
    FLASH                                             256KB FALSH
    Diagnostic Port                              24PIN, self-determination design
    Wireless Port                                 802.11b/g WIFI wireless
    LED                                                 4 LED indicator light£¬indicate power and status.
    Power                                              DC 9V-28V
    Consumption                                 3W
    Size                                                  156(L)x86(W)x35(H)mm
    Working Temperature                  -20¡«+70 ¡ãC
    StorageTemperature                    -40¡«+85 ¡ãC


    Product Feature
    1.Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles
    protocols.
    2.Use standard 802.11b/g WIFI wireless£¬connect easy to network, or
    connect to Laptop to realize wireless diagnosis.
    3.Diagnostic software accord with international standard, collocate
    communication port flexibly, less connectors support almost all vehicles
    socket.
    4.Self-determination design for connectors and cables.
    5.Compliant with 12V and 24V communication, Support heavy duty vehicles.
    6.Hardware accord with CE and FCC standard.

    Vedix® is the latest diagnostic software platform of ALLScanner, be used with hardware of VCX®£¬the characters be shown as below:
    Diagnostic software can be operated under WinCE and Windows,
    available installation for Laptop or PDA.
    Automotive Diagnostic language (VDL) exploitation platform based on
    XML by self-determination and high efficiency database management
    system, these will make it easily to explore the vehicles.
    Continuously update for diagnostic software.

    Special Function  for optional

    1.Support diagnostic software of TOYOTA TIS Techstream to realize same function as that.
    2.Support diagnostic software of BENZ STAR ( CAN BUS)
    3.Support diagnostic software of BMW INPA to realize same function as that
    4.Support diagnostic software of NISSAN Consult-III£¬On developing.
    5.Support diagnostic software of HONDA HDS£¬On developing.
    6.Support diagnostic software of   FORD VCM IDS£¬On developing.
    7.J2534 Reprogramming Capability.
