    TOYOTA TIS TOOL
    Diagnostic Cables
    ¡¾Print Page ¡¿ ¡¾Close¡¿

    ¡¾back¡¿

    Toyota TIS OEM diagnostic Tool
    Features

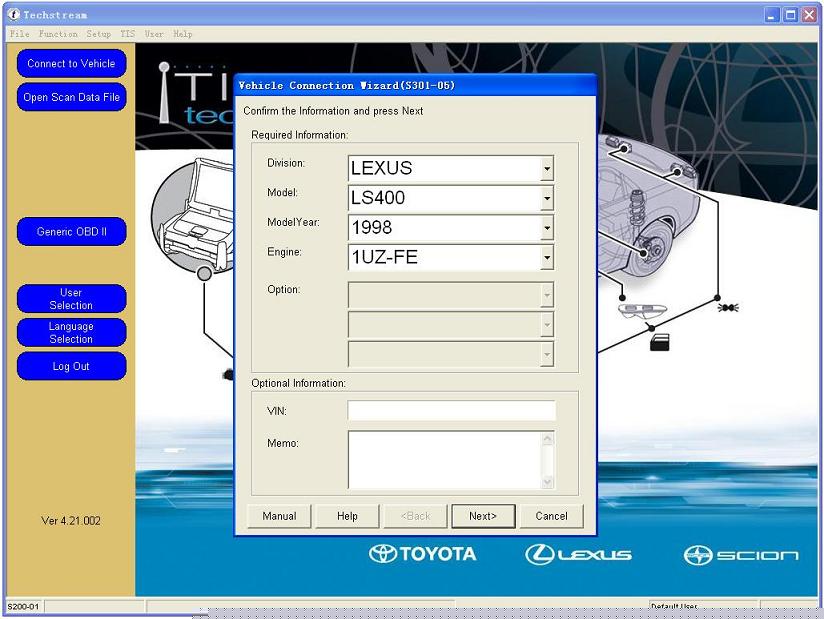

    Support Toyota TIS OEM diagnostic software

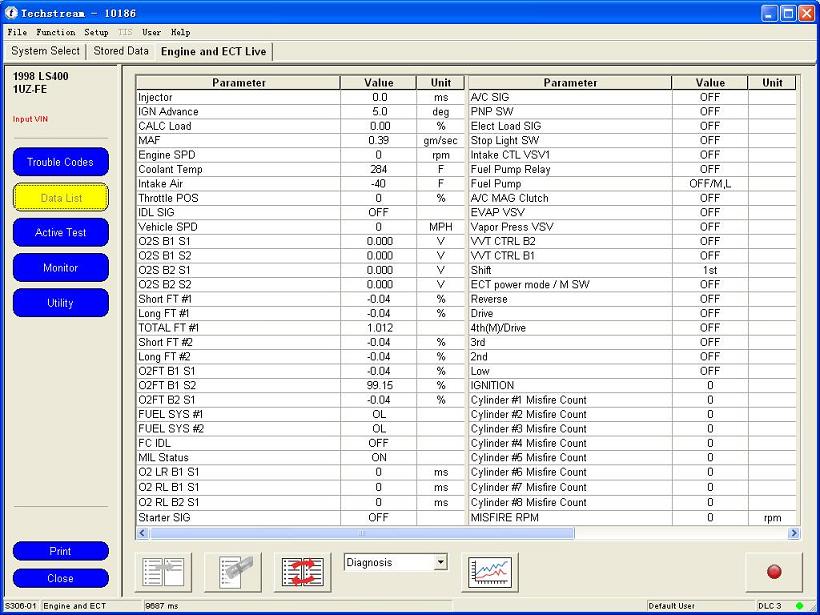

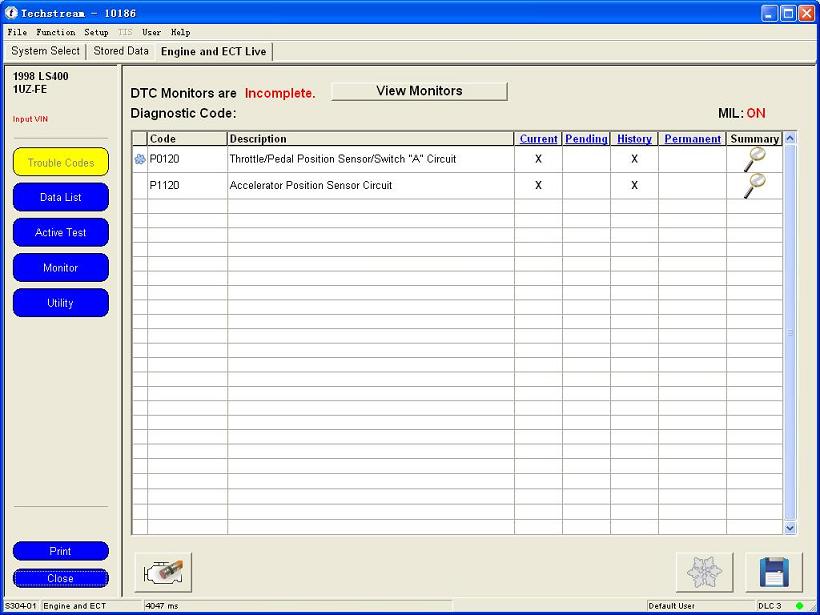

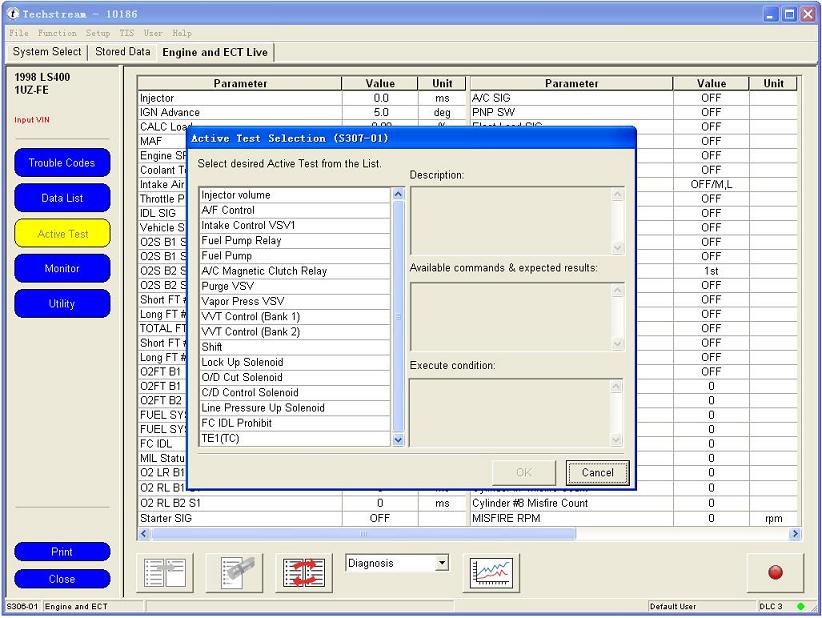

    Supports Diagnostics and Active tests
    Supports most 1996 and newer vehicles with OBDII/DLC3 diagnostics
    Easy to install and carry
    Update firmware via internet
    Cost-effective
    High performance with ARM chip inside
    Status LED

    Supported Protocols
    K-Line ISO 9141
    KWP 2000 ISO 14230-4
    CAN 2.0B ISO 11898
    CAN ISO 15765-4

    Specifications
     Operating Temperature: -20 to 70  ( -4 to 158  )
     Storage Temperature:     -40 to 85  ( -40 to 185  )
    Diagnostic Interface: 16 PIN
     USB Interface     : USB 2.0
     Power: DC 5 V - 36 V
     Consumption: 0.3 W
     Dimensions:  76 mm(2.99")L x 43 mm(1.69")W x 19 mm(0.75")H

    Accessories Included
    Driver CD: Includes user manual, drivers, and etc.
