    Autoboss PC MAX
    Diagnostic Cables
    ¡¾Print Page ¡¿ ¡¾Close¡¿

    ¡¾back¡¿

    Software Features
    With full-feature OEM-based software, experience the difference with AUTOBOSS PC-MAX.
    Comprehensive diagnosis & reading of control modules. Successful diagnostics means proper detection of all ECMs. With dealer-level capability and the widest vehicle range, the AUTOBOSS PC-MAX will put your team in the driver's seat and your business on the road to success.

    PC-MAX offers
    --Over 40 makes, 1,000 vehicle system coverage, --including CANbus systems
    --Access to Powertrain, Chassis and Body systems
    --One click "Quick Test" button to scan all ECUs
    --Live data display with waveform displays
    --Component-level and System-level activations
    --Reset and clear adaptations, calibrations and service functions
    --Hyundai and VW/ Audi immobilizer special functions
    --ECU initialization and coding
    --SAE J2534 "Pass-thru" ECU reprogramming
    --Nissan/ Infiniti idle speed self learning function
    --Frequent Internet software updates
    --Multi-language for international market demand
    --"PC-link" functions for PC operations

    Advantage:
    Free to test cars within 50-100m
    (Distance depends on environment; the above distance is for reference only.)

    Specification
    --Power Supply: 8-12VDC, 110-250VAC, 50Hz
    --Connection: Wireless or USB
    --Minimum PC System Requirement (Not included):
    -- Windows XP or Vista
    -- CPU 300MHz
    -- 256MB RAM memory
    -- 1GB Hard Disk Memory
    -- CD Drive
    --Working Temperature: 10 - 176oF (-10 - 80oC
    --Humidity: < 90%
    --Dimensions: 20" X 14" X 6"

    LANGUAGE:
    1, English,
    2, Spanish,
    3, Chinese(Traditional),
    4, Chinese(simplified),
    5, Russian,
    6, ...

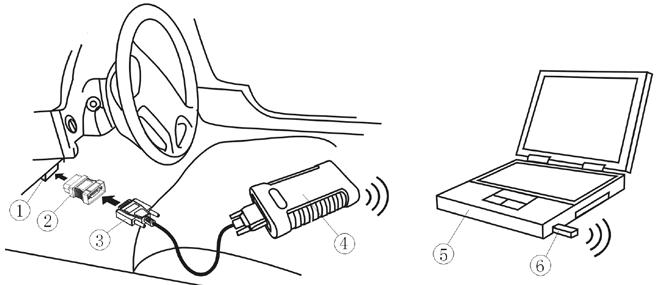

    Connection


    1. Diagnostic socket   2. Adaptor  3. Main cable  4. PC-MAX main unit  5. PC  6. Wireless adaptor

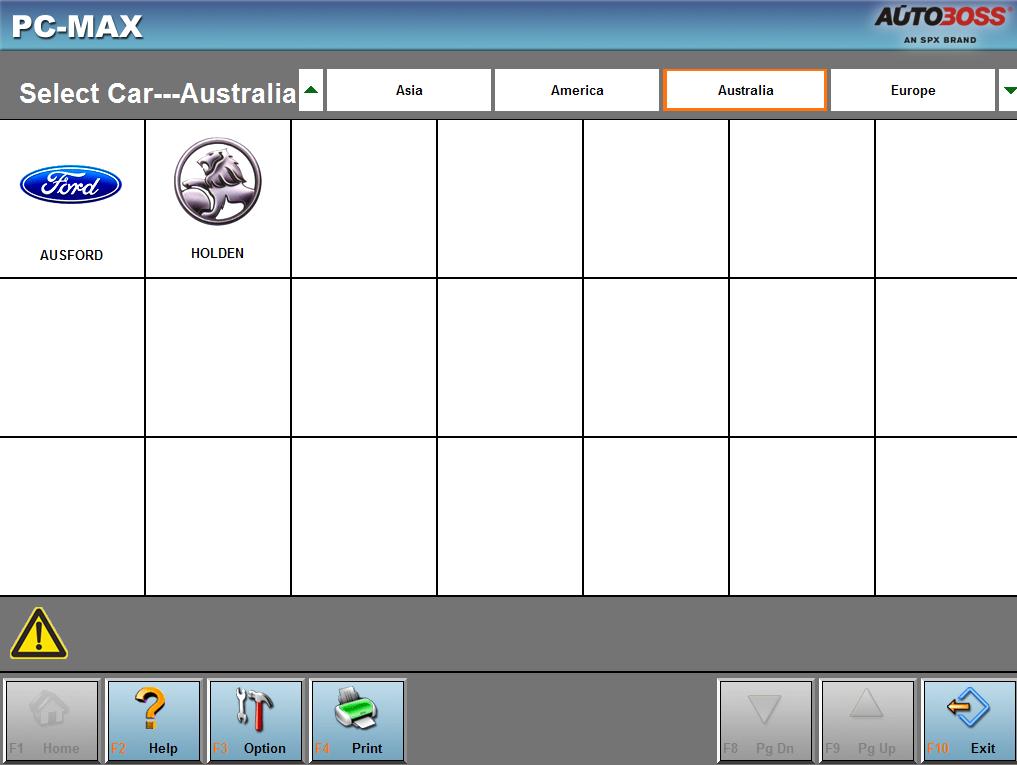

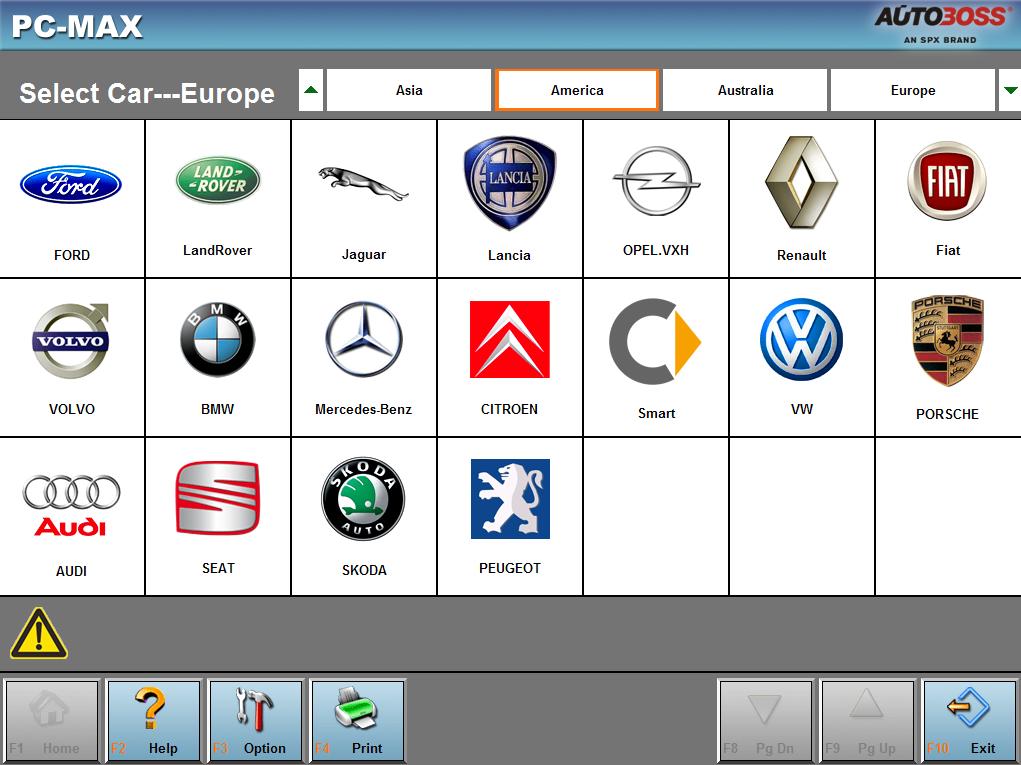

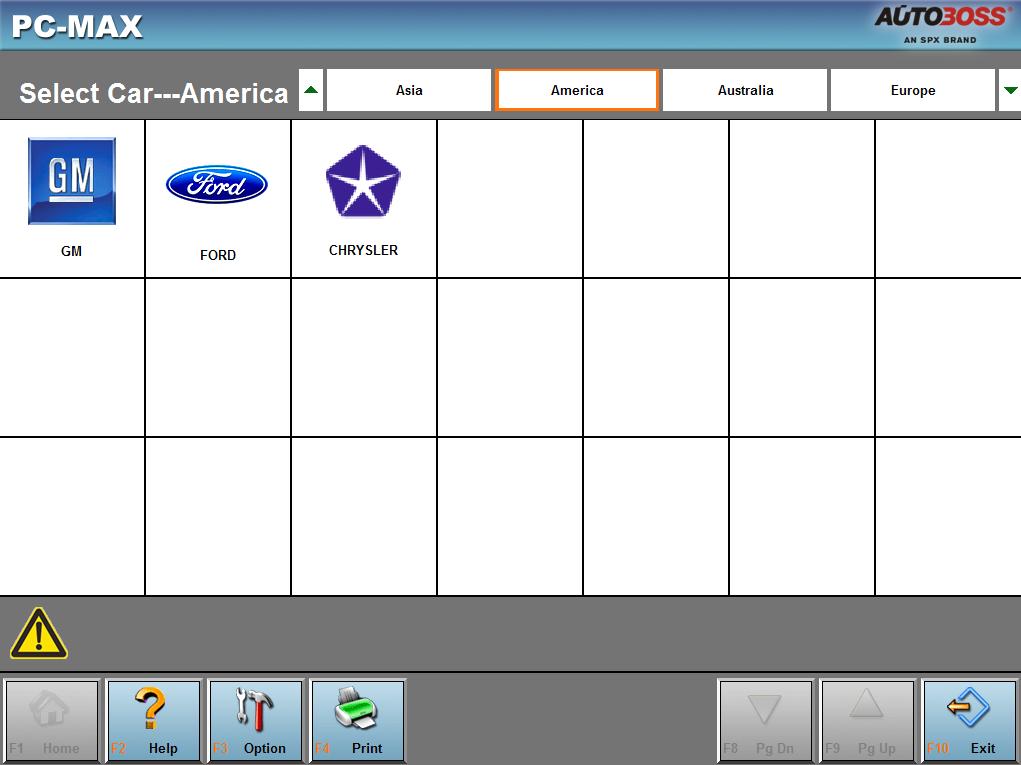

    Software List:

    Asia£º

    Europe:

    America:

    Austrlia:


    DIAGNOSTICS

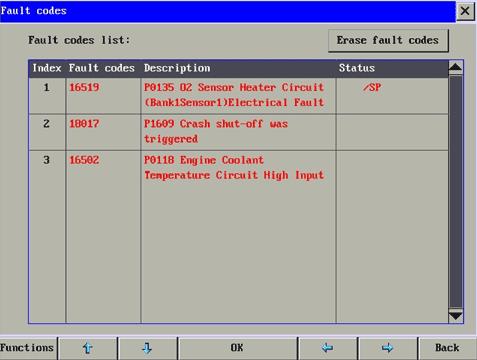

    Fault Codes

    Now you can bring down the service costs associated with fault codes. Easily read & clear vehicle specific information - manufacturer specific codes, factory codes, and generic fault codes on a particular electrical circuit. Our Recommendation: Don't forget to print it out in real time.

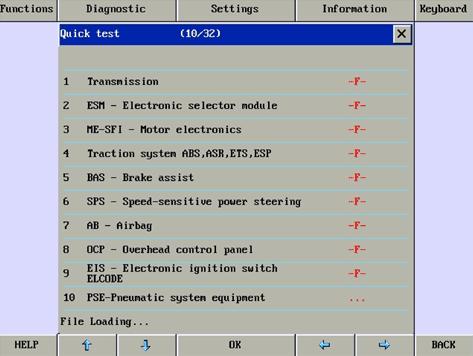

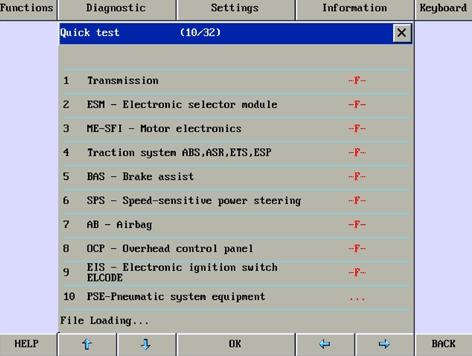

    Quick Test & Quick Delete (select software)
    Provides a bird's-eye view of all control modules in the vehicle system. The Quick Test feature allows you to quickly scan all systems in the vehicle, identify controllers with faults and provides immediate access to those systems without having to navigate through multiple menus. Our Recommendation: Don't forget to print it out in real time.

    Live Data
    The basics of electronic diagnostics begin with fault codes & live data. Experience high-speed response rate of 8-10 frames per second w/ real-time troubleshooting of up to 4 graphs. Diagnose signals for rich or lean conditions with live data retrieval and viewing of modules in digital and analog format. Our Recommendation: Don't forget to print it out in real time.

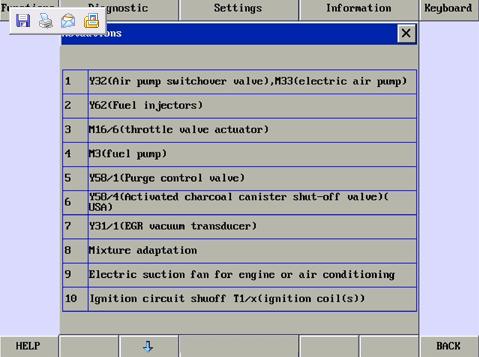

    Component & System level actuations
    Perform verification tests to validate the functionality of a particular electrical circuit. This function will bypass time-consuming labor to check the workmanship of electronic components such as switches, sensors, relays, & actuators. Use the PC-MAX to actuate control modules and see what needs replacement without removing panels and testing without the usage of a multimeter. (e.g. cylinder power balance test, EVAP system leak, EGR valve, solenoids, power windows, winshield wiper activation, etc.)

    SPECIAL FUNCTIONS

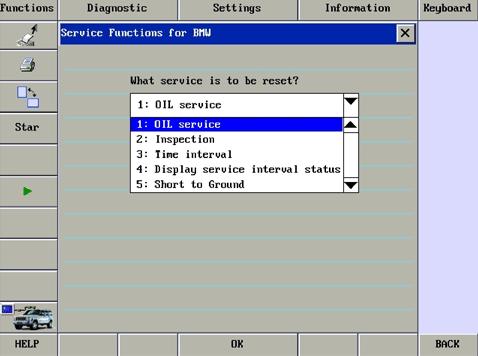

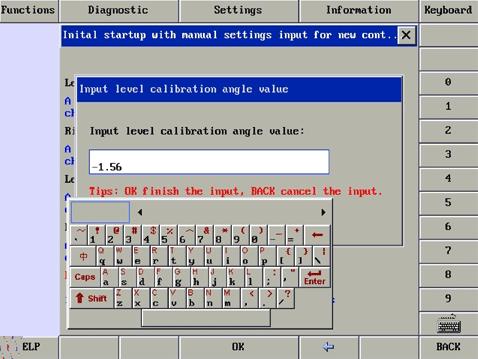

    Service Resets & Initialization

    When components are replaced within a module (e.g. injectors, switches, mass air flow sensor, cooling temp sensor, etc.), a vehicle will run very rough. Initialization immediately re-adapts all the values, so the components will be recognized by the vehicle system. (e.g. To reset the service indicator for the vehicle such as "oil service", "service reminder light", "steering angle sensor*", etc.)

    Vehicle Adjustments
    Ability to adjust performance parameters. (e.g. idle RPM, idle speed adjustment, ignition timing, vehicle w/ immobilizer, set fuel synchronization, throttle-body relearn, DME Alignment, etc.)

    Coding & Programming.
    Read & change coding has now become highly important for any new retrofit control unit in the vehicle. Contact an AUTOBOSS Dealer for more information.

    OTHER FUNCTIONS
    Self-learn Function

    Create a personalized database system to record ideal conditions of the actual values in the vehicle system.

    Record 160 Frames of Live Data
    Record a real-time data stream up to 160 frames during a drive cycle. More complicated diagnosis of an intermittent problem will require the use of this function to evaluate data stream during a controlled drive cycle.

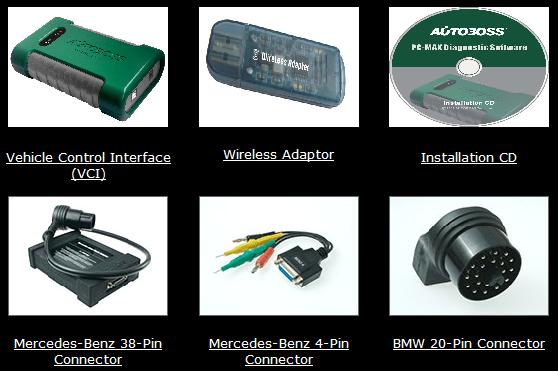

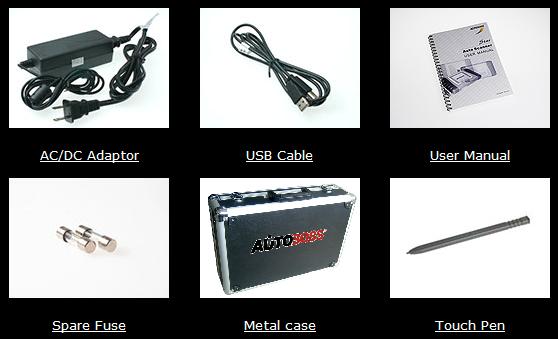

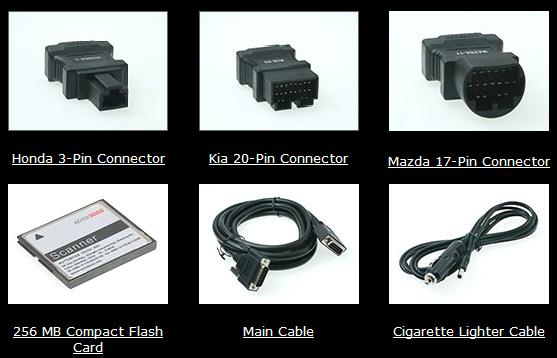

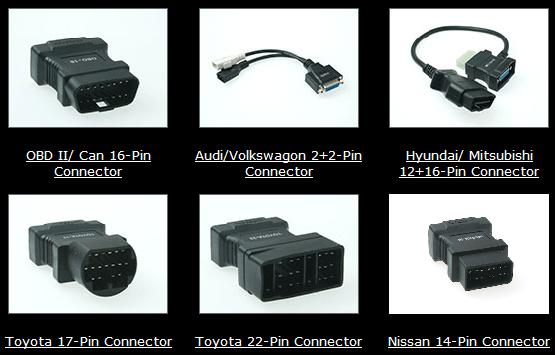

    Unit Contents
