    FVDI ABRITES Commander 2014
    Diagnostic Cables
    ¡¾Print Page ¡¿ ¡¾Close¡¿

    ¡¾back¡¿

    2014 New FVDI ABRITES Commander with 18 Softwares

    Currently FVDI is Distributed with Following Diagnostic Software:

    1. FVDI ABRITES Commander for Volkswagen, Audi, Skoda, Seat, Freely Get: Hyundai, Kia + Tag Software + VVDI Immo Plus V13.6

    1.1 FVDI ABRITES Commander for Volkswagen, Audi, Skoda, Seat

    2. FVDI ABRITES Commander for Mercedes-Benz, SMART, Maybach

    3. FVDI ABRITES Commander for BMW, MINI

    4. FVDI ABRITES Commander for OPEL, VAUXHALL

    5. FVDI ABRITES Commander for Peugeot, Citroen

    6. FVDI ABRITES Commander for Fiat, Alfa, Lancia

    7. FVDI ABRITES Commander for Renault

    8. FVDI ABRITES Commander for Porsche

    9. FVDI ABRITES Commander forNissan, Infiniti

    10. FVDI ABRITES Commander for Toyota / Lexus

    11. FVDI ABRITES Commander for Tag without fvdi & avdi host

    12. FVDI ABRITES Commander for Tag with fvdi & avdi host

    13. FVDI ABRITES Commander for Volvo

    14. FVDI ABRITES Commander for FORD, MAZDA, JAGUAR, LAND ROVER, MERCURY, LINCOLN: Ford, Mazda, Jaguar, Land Rover, Mercury, Lincoln

    15. FVDI ABRITES Commander for Chrysler, Dodge and Jeep

    16. FVDI ABRITES Commander for Mitsubishi

    17. FVDI  ABRITES Commander for DAF

    18. FVDI  ABRITES Commander for Bike, Snowmobiles and Water scooters


    It will release soon for these two software:

    17. FVDI ABRITES Commander for DAF

    18.FVDI ABRITES Commander for Bike, Snowmobiles and Water scooters

    Client can order part  Commander function .
    F01:
    FVDI /AVDI ABRITES Commander For Mercedes/Smart/Maybach V6.4 +Tag V6.1+Hyundai&Kia V2.1

    FVDI /AVDI can work for Windows XP(SP2 or later) Professional Version and Windows 7 Ultimate.
    Software includes Mercedes/Smart/Maybach V6.4 +Tag V6.1+Hyundai&Kia V2.1.
    Also you can choose any one of the following softwares as a gift for free.
    1.OPEL/VAUXHALL
    2.Peugeot/Citroen
    3.Fiat/Alfa/Lancia
    4.Renault
    5.Toyota/Lexus
    6.Hyundai/KIA
    7.Nissan/Infiniti
    8.Ford
    9.Volvo
    10.Chrysler, Dodge and Jeep
    11.Mitsubish

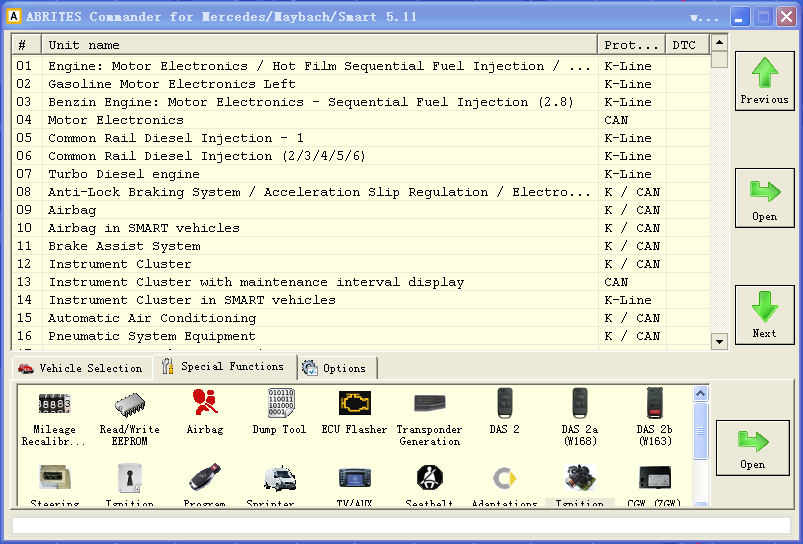

    ABRITES Mercedes Commander is a professional software for diagnostic of Mercedes-Benz vehicles. It allows you to perform complete diagnostics of all 1995-present Mercedes-Benz models. It provides some unique functions, which are not supported by any other diagnostic tool.
    Diagnostics is performed via the OBD-II connector or via Mercedes-Benz proprietary 38-pin connector (only older cars, pre-2001), or via Mercedes-Benz proprietary
    14-pin connector. Our PC USB diagnostic interface supports over 26 multiplexed K-Lines and Mercedes-Benz diagnostics CAN-BUS interface (also known as CAN-D).

    Standard diagnostic functions:
        1. Read identification
        2. Read extended identification
        3. Read/Clear fault codes
        4. Scanning for control units / Clearing fault codes in all control units
        5. Display of Actual Values
        6. Actuator Tests
        7. Reset of control units
        8. Control unit adaptations
        9. Adjustment of injector injection quantities adaptation for Diesel Engines (CDI-4, CDI-5)

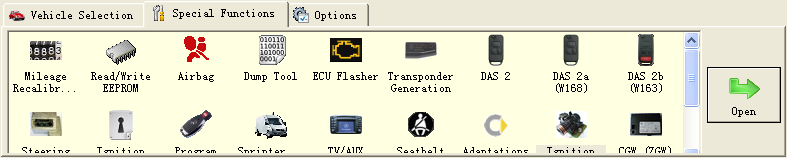

    Special functions:

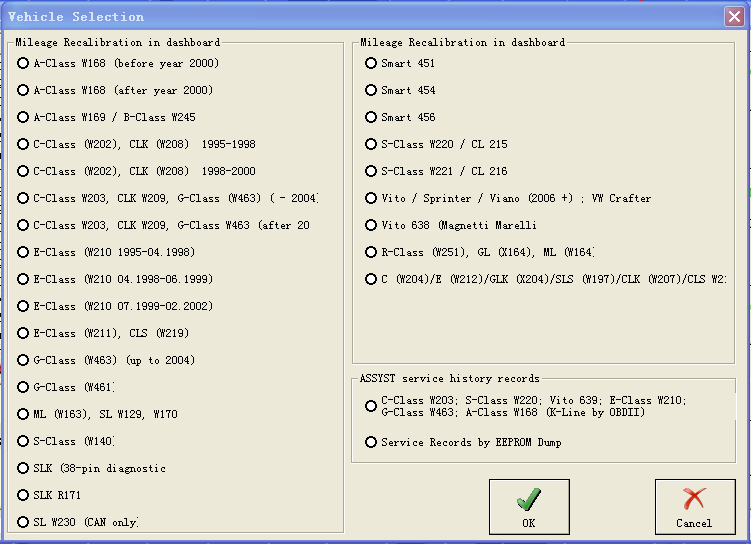

        1. By OBDII - Comprehensive Mileage Recalibration for W221 and W216 vehicles. The mileage is changed in the following units: CGW, EZS, Instrument Cluster and
        all other units, which store the mileage (like Tire Pressure Monitor and Adaptive Brake, for example) , Read/Write service history records in ZGW of W221 S-Class
        and W216 CL, Read/Write complete EEPROM and Flash of CGW (Central gateway) of W221 S-Class and W216 CL, Mileage Recalibration in dashboard for Vito, Viano, Sprinter
        after 2006 year
        E-Class W211, CLS W219, GL X164, ML W164, R-Class W251, CLK W209, C-Class W203 and G-Class W463
        A-Class W169, B-Class W245
        2. By OBDII - Mileage Recalibration for W204/W212/X204/W197/W207 vehicles. The mileage is changed in the following units: ASSYST, ASSYST Plus, EZS, Instrument Cluster
        3. By OBDII - Read/Write EEPROM of Dashboard control units, ESP, Sensotronic Brake Control (SBC) and many others...
        Online manual for Sensotronic Brake Control Repair

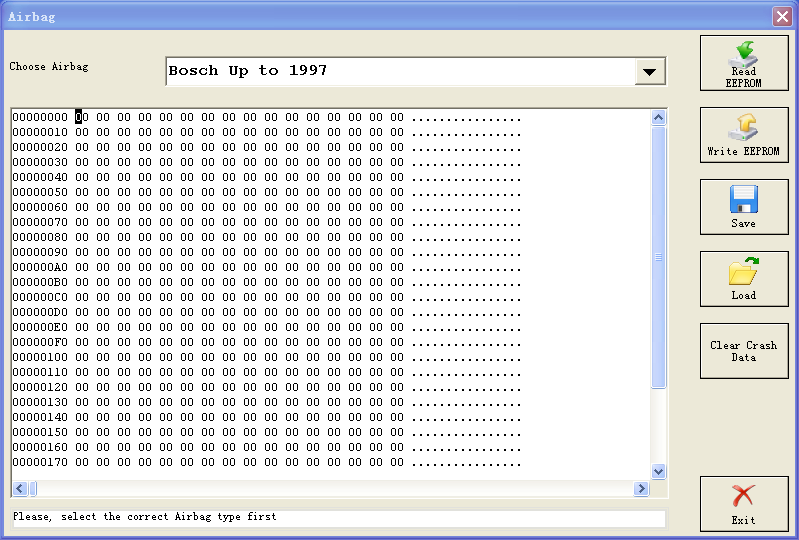

        4. By OBDII - Airbag - Read/Write EEPROM, Clear Crash Data, Erase Motohours
        5. Dump Tool - calculate mileage values, reset mileage values, clear airbag crash data, make engine control virgin and so on
        6. By OBDII - ECU - Read/Write Flash, Read/Write EEPROM of Engine Control Units

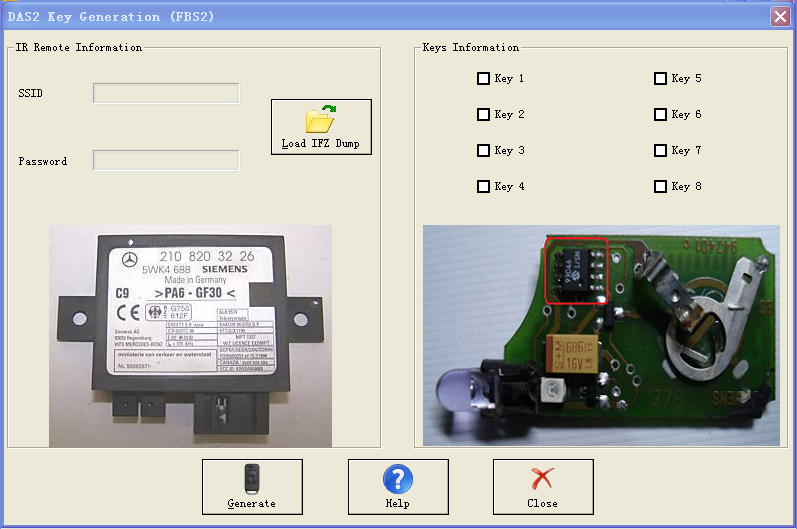

        7. DAS-2 - Generation of key dumps for vehicles with DAS-2 Immobilizer system.

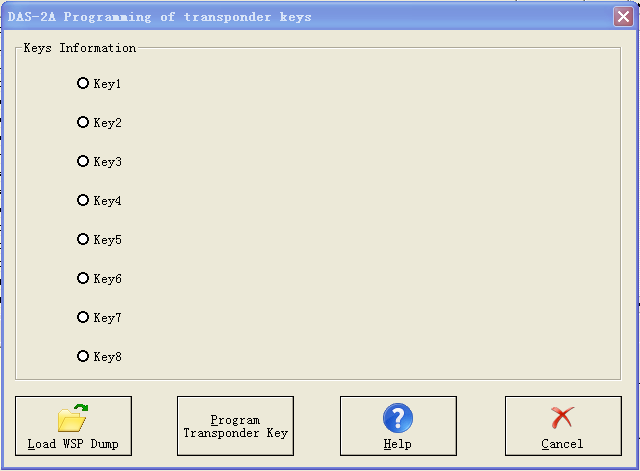

        8. DAS-2a - Programming transponder keys for DAS 2a Immobilizer system (W168 A-Class).

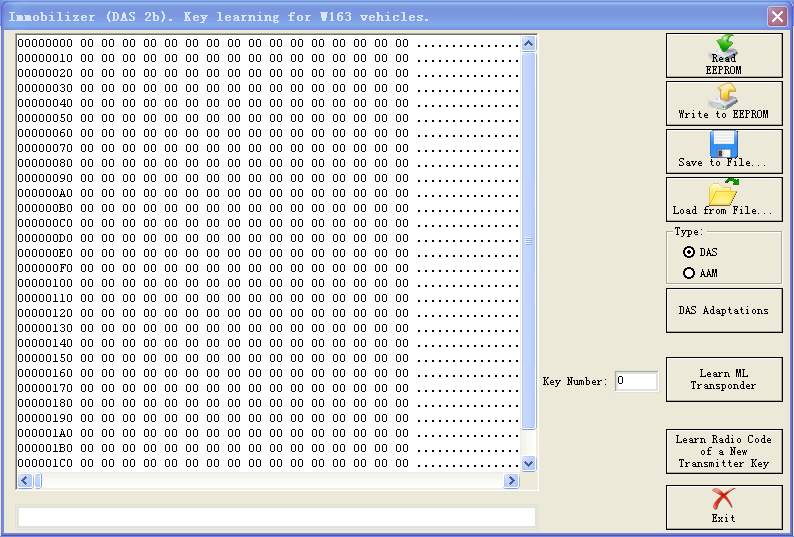

        9. By OBDII - DAS-2b - Key Learning for Mercedes W163; Read/Write EEPROM of AAM/EAM control modules; Learn radio code of transmitter keys; Deactivate/Reactivate keys

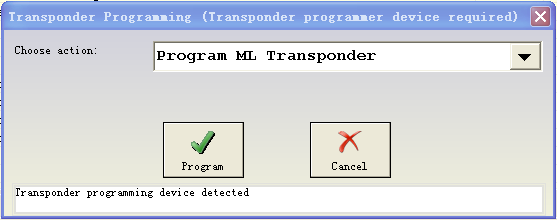

        10. Transponder generation
        11. By OBDII - TV/AUX activation/deactivation
        12. By OBDII - Seatbelt warning activation/deactivation
        13. By OBDII - Reverse warning activation/deactivation
        14. By OBDII - Activation/deactivation of Speed warning for Gulf States

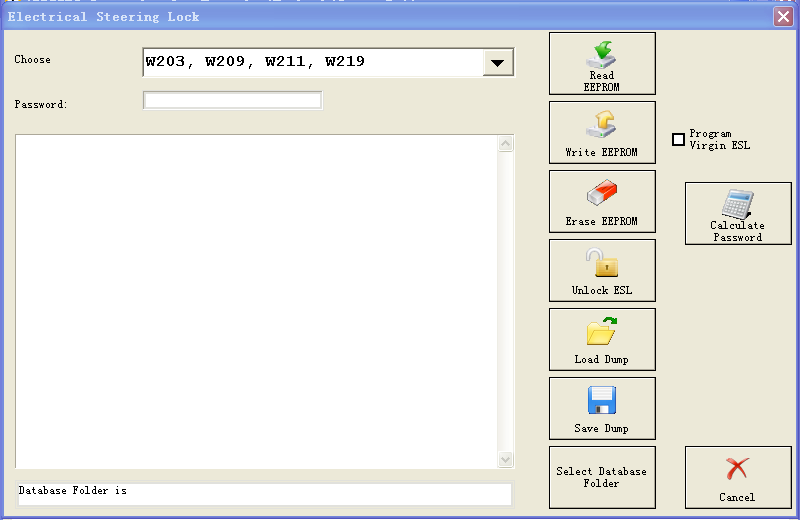

        15. Electrical Steering Lock (ESL) - Read/Write/Unlock EEPROM of ESL for the following vehicles: W202, W208, W209, W210, W203, W211, W219 by direct connection to
        the ESL module.
        Please, note that in order to erase or write the EEPROM of this type of ESL you need to have the ESL database. Please, find the links for the ESL database on

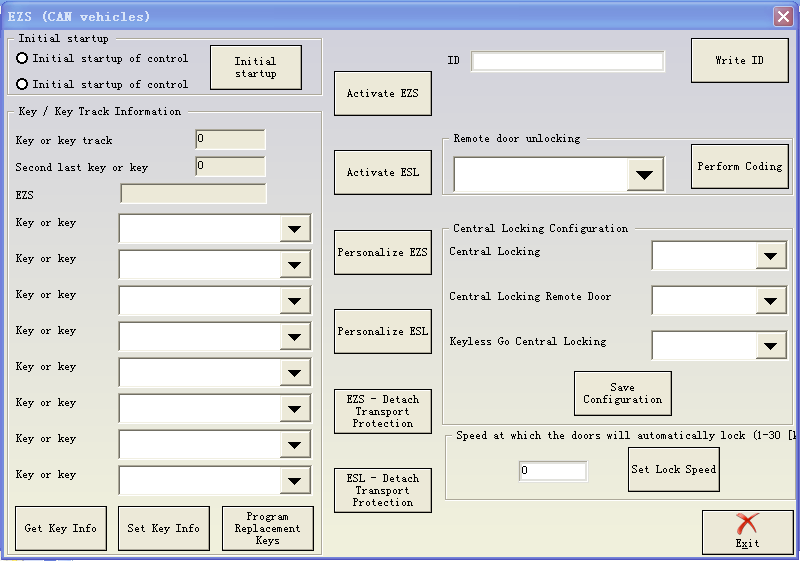

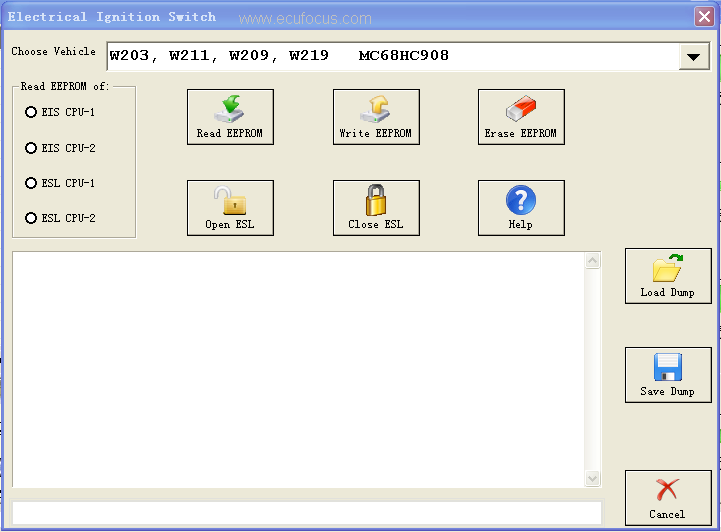

         16. Electrical Ignition Switch (EIS, K-Line) - Read EEPROM of EIS and ESL modules by diagnostic connection to the EIS module; Open/Close ESL
        17. Electrical Steering Lock (ESL, CAN) - Disable/Enable keys; Write VIN of new units; Activate/Deactivate ESL; Activate/Deactivate EZS

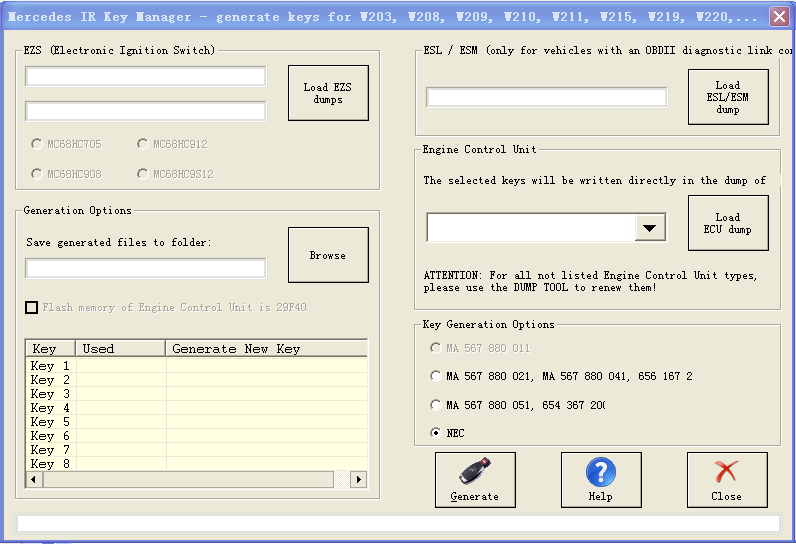

        18. Generation of Dumps for programming keys for cars, which use DAS-3 system. With the IR Key Manager special function you can generate keys for the following
        vehicles: W203, W208, W209, W210, W211, W215, W219, W220, W230, W639. The generated dumps should be programmed in the EZS, ESL and the key. For the key all NEC
        processors and the following Motorola processor is supported: MA 567 880 051, 654 367 2004
        For all owners of MN005 license - If you have a Motorola key (it doesn't matter if it is working key or not, as long as it is from the same car) we can send you
        working key dumps without the need to disassemble, remove and read the EZS! Just read the EZS by diagnostics from the Special Function "EIS K-Line" and send
        the dump together with the dump from the Motorola key. We will send you working key dumps FREE of charge within 1 working day.
        ZN002 - NEC programmer - for NEC MCU's assembled in the IR-Keys

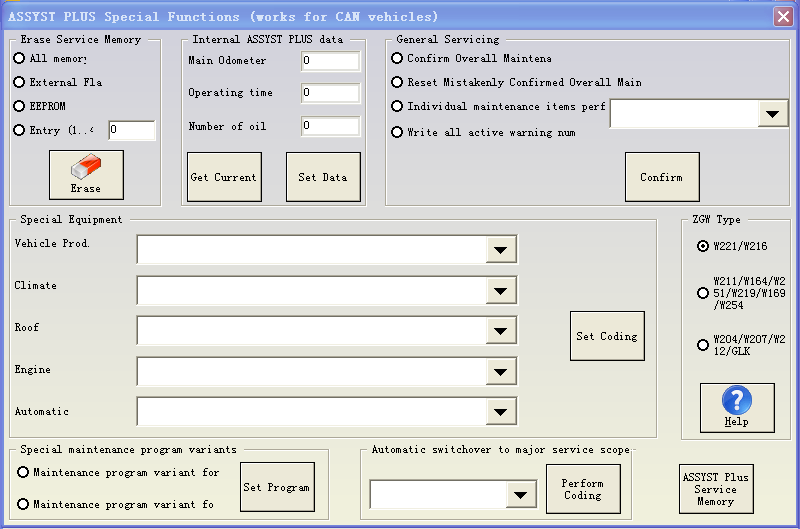

        19. By OBDII - Change ASSYST PLUS Service maintenance records
        20. By OBDII - Change ASSYST Service maintenance records

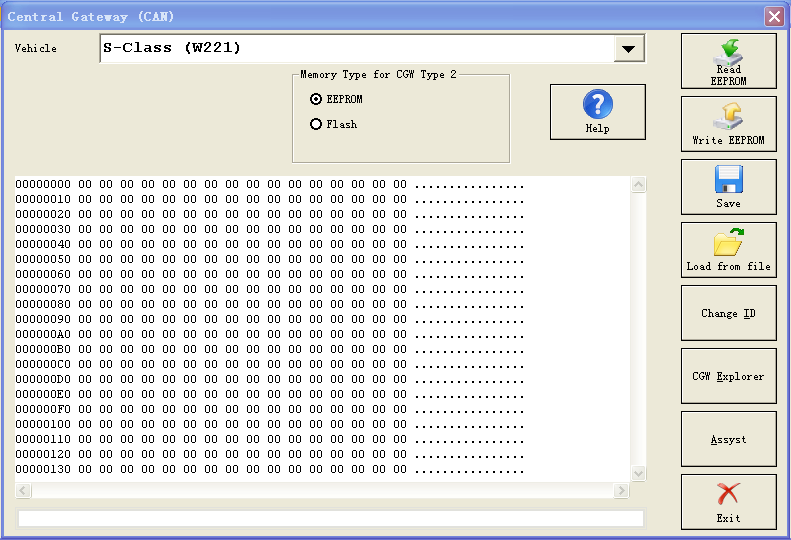

        21. By OBDII - Read/Write COMPLETELY EEPROM of Central Gateway (CGW) via OBDII. Works for the following vehicles : W211, W171, W219, W164, X164, W169, W245, W204, W212, X204, W218
        22. Custom requests
        23. By OBDII - SMART key teach-in (K-Line and CAN)
        24. By OBDII - Renew of 7-Gear Electronic Transmission Control Unit (722.9) and ISM - Intelligent Selector Module















    F02:
    FVDI /AVDI ABRITES Commander For BMW V10.3+Tag V6.1+Hyundai&Kia V2.1
    FVDI /AVDI can work for Windows XP(SP2 or later) Professional Version and Windows 7 Ultimate.
    Software includes BMW V10.3+Tag V6.1+Hyundai&Kia V2.1
    Also you can choose any one of the following softwares as a gift for free.
    1.OPEL/VAUXHALL
    2.Peugeot/Citroen
    3.Fiat/Alfa/Lancia
    4.Renault
    5.Toyota/Lexus
    6.Hyundai/KIA
    7.Nissan/Infiniti
    8.Ford
    9.Volvo
    10.Chrysler, Dodge and Jeep
    11.Mitsubish

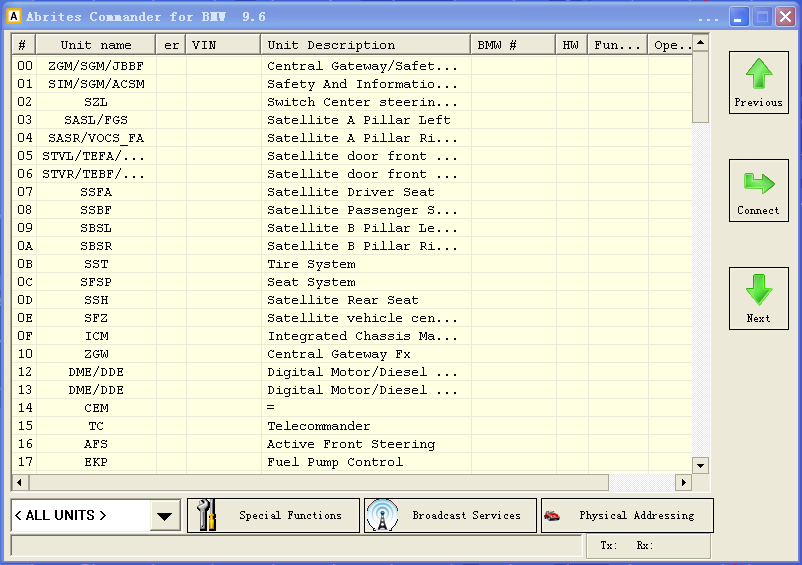

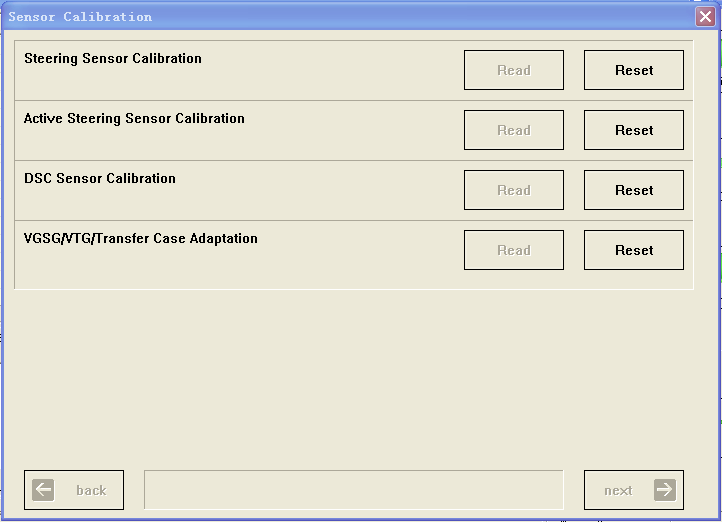

    ABRITES Commander for BMW is a PC - Windows based diagnostic software for dealer level access to the vehicle (identification, trouble codes and so...), mileage
    recalibration, key programming, programming vehicle order. Tool can access CAS1, CAS2, CAS3 and CAS3+ by OBDII independent from the firmware of the CAS. Also you can perform unusual for remaining diagnostic tools operations with the electronic modules inside of the vehicle like programming Vehicle Order and Coding of electronic control units. Access to the EEPROM memory of the units in the vehicle. Covers vehicles BMW series starting from E36 up to latest models F series (F01,
    F10,F20,F25 and so...).

    Functions included in the base package (AVDI interface)
        1. Identification (VIN, mileage, production data)
        2. Read and clear diagnostic trouble codes (current, history and shadow)
        3. Added DTCs in 17 languages: English, German, French, Thai, Swedish, Italian, Spanish, Indonesian, Korean, Greek, Turkish, Chinese, Chinese traditional, Russian,
        Dutch, Portuguese, Japanese. DTC conditions information (Odometer value, Timestamp, full engine status report for EDC17)
        4. Some DTCs (mostly that of F series) are given detailed documentation of what caused the problem and how the problem should be handled
        5. Manager of service intervals, reset service reminders (CBS)
        6. Measured values/live data
        7. Read and Program Engine Control Unit flash memory for tuning purposes by OBDII
        8. Entering and leaving from logistic mode of the modules in the vehicle
        9. Synchronization DME/DDE and EWS/CAS, CAS and ELV
        10. Enable / Disable of the keys
        11. Enable / Disable of TV function for E3x,E46,E5x,E83,E85,E86 (for the next bodies available via unit coding)
        12. Ability for diagnostic on internal CAN buses

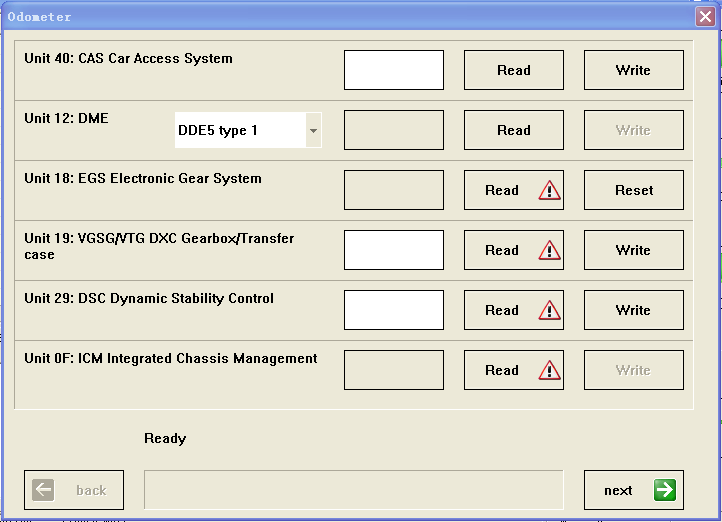

        13. Read / Program mileage from the IKE, LCM, EWS, ECU, ABS, VTG, EGS (please refer coverage list)
        14. Displaying KEY CUTTING code (mechanical code) stored in CAS modules

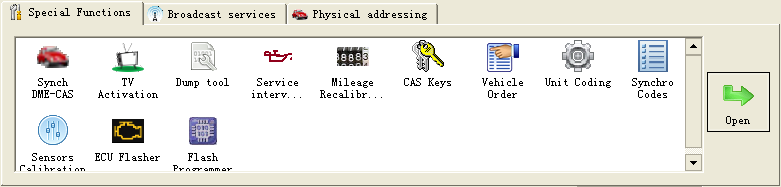

    Special functions:
        1. Service intervals/CBS - ability for programming of service counters by OBDII
        2. Programming flash memory of all electronic control units by OBDII (can be used directly databases released from BMW)
        3. Programming Vehicle Order data (you can add new units to configuration of the vehicle) - E body
        4. Coding (configuration) of each electronic control unit in the vehicle - E body
        5. Programming identification of the modules in the vehicle *
        6. Programming User Information Fields in the electronic modules *
        7. Read / Write of memory of the electronic control modules *
        8. Program mileage stored in CAS1, CAS2 and CAS3 by OBDII
        9. Program keys by OBDII - CAS1, CAS2 and CAS3 systems - support latest versions CAS3 updated in 2011 year
        10. Key programming for CAS3+ with latest firmware version (ISTA-P 45)
        11. Preparing a keys by dump for BMW models with CAS4 - newest BMW 1, 5, 5 GT, 6, 7, X3 series ( body Fxx)
        12. Read / Write eeprom from CAS1 via OBDII
        13. Read / Write eeprom data from CAS2/CAS3 via dash connector or cas-connector
        14. Read / Program mileage stored in different electronic control units by OBDII like ECU, EGS, SGM, JBBF and many others
        15. Extracting and programming synchronization code between ECU and CAS by OBDII
        16. Ability to works together with transponder programmer

    * Not granted for all type of control modules.







    F03:
    FVDI /AVDI ABRITES Commander For Chrysler Dodge Jeep V3.1+Tag V6.1+Hyundai&Kia V2.1
    FVDI /AVDI Commander for Crysler, Dodge and Jeep is a software intended for learning of keys and Mileage Recalibration of these vehicles. Basic diagnostics of all control units, including, but not limited to Engine, Instrument Panel Cluster, Skim, Electronic Transmission Control. Pin code extraction from SKIM dump for older vehicles.

    FVDI /AVDI can work for Windows XP(SP2 or later) Professional Version and Windows 7 Ultimate.
    Software includes Chrysler Dodge Jeep V3.1+Tag V6.1+Hyundai&Kia V2.1

    Standard diagnostic functions:
    The key learning function works by CAN and J1850. Please, see below the list of supported vehicles. In the next versions we will add more vehicles to this list FREE for all customers who own the key learning function. Since version 2.3 we have added support for J1850 vehicles. Owners of the Chrysler Key Learning special function can read and write the FULL EEPROM of the Immobilizer control unit.
    Connect to the devices using KWP2000 and UDS over ISO transport protocol (CAN)
    For all electronic control units reading identification and extended identification information
    For all electronic control units read errors (DTCs)
    For all electronic control units clear errors (DTCs)
    Output tests
    Control unit adaptations - Seatbelt Warning Enable/Disable, Change mileage display between miles and kilometers and so on
    Actual values display
    Scan all units
    Clear all DTCs

    Supported Vehicles for key learning and remote control programming by OBDII:
    Chrysler 300 (2006)
    Chrysler 300 (2007)
    Chrysler 300 (2010)
    Chrysler 300 (2011+) proximity keys
    Chrysler 300C (2005-2008)
    Chrysler 300C (2011+) proximity keys
    Chrysler 300M (-2007)- Requires J1850 Adaptor
    Chrysler 300M (2007)
    Chrysler 200 (2012)
    Chrysler Aspen (2007-2009)
    Chrysler PT Cruiser (-2006)- Requires J1850 Adaptor
    Chrysler PT Cruiser (2006-2010)
    Chrysler Sebring Convertible (2008)
    Chrysler Sebring (2003-2006)- Requires J1850 Adaptor
    Chrysler Sebring (2007-2008)
    Chrysler Sebring Hardtop(2011+)
    Chrysler Sebring Coupe (2011+)
    Chrysler Neon- Requires J1850 Adaptor
    Dodge Avenger (2007-2011)
    Dodge Caliber (2007-2011)
    Dodge Caliber (2011+)
    Dodge Caravan (-2007)- Requires J1850 Adaptor
    Dodge Caravan (2007-2010)
    Dodge Challenger (2008-2010)
    Dodge Challenger (2011+) proximity keys
    Dodge Charger (2006-2010)
    Dodge Charger (2011+) proximity keys
    Dodge Dakota (2005-2011)
    Dodge Durango Adv./SLT (2005)
    Dodge Durango (2001-2003)- Requires J1850 Adaptor
    Dodge Durango (2004-2009)
    Dodge Durango (2011+) proximity keys
    Dodge Grand Caravan Sport- Requires J1850 Adaptor
    Dodge Grand Caravan (2008-2009)
    Dodge Intrepid- Requires J1850 Adaptor
    Dodge Journey (2009-2011)
    Dodge Journey (2011+) proximity keys
    Dodge Magnum (2005)
    Dodge Magnum (2007)
    Dodge Neon (2005)
    Dodge Nitro (2007-2011)
    Dodge Pichup- Requires J1850 Adaptor
    Dodge RAM (-2006)- Requires J1850 Adaptor
    Dodge RAM 1500 (2006-2011)
    Dodge RAM 2500 (2006-2011)
    Dodge RAM 3500 (2006-2011)
    Dodge RAM (2007-2011)
    Dodge Ram (2011+) proximity keys
    Dodge Stratus- Requires J1850 Adaptor
    Jeep Commander (2006-2010)
    Jeep Grand Cherokee (2001-2005)- Requires J1850 Adaptor
    Jeep Grand Cherokee (2005-2011)
    Jeep Grand Cherokee (2011+) proximity keys
    Jeep Liberty (-2007)- Requires J1850 Adaptor
    Jeep Liberty (2008-2011)
    Jeep Liberty (2011+)
    Jeep Compass (2007-2010)
    ?nbsp;  Jeep Compass (2011+)
    ?nbsp;   Jeep Patriot (2007-2011)
    ?nbsp;   Jeep Patriot (2011+)
    ?nbsp;   Jeep Laredo (2007-2011)
    ?nbsp;   Jeep Wrangler Rubicon (-2007)- Requires J1850 Adaptor
    ?nbsp;   Jeep Wrangler (2007-2011)
    ?nbsp;   Jeep Wrangler (2011+)
    ?nbsp;   Plymouth Neon Highline (2001-2005)- Requires J1850 Adaptor
    ?nbsp;   Volkswagen Routan (2009-2012)

    Owners of the Chrysler Mileage Recalibration special function can read and write the FULL EEPROM of the Instrument Cluster control unit. Supported Vehicles for Mileage Recalibration by OBDII:
    *  Dodge Avenger 2007+
    *  Dodge Avenger (2011+)
    *  Dodge Caravan 2007+
    *  Dodge Caliber 2007+
    *  Dodge Charger 2007+
    *  Dodge Dakota (2004-2006)
    *  Dodge Durango (2004-2006)
    *  Dodge Durango 2007+
    *  Dodge Durango (2011+)
    *  Dodge Grand Caravan (2011+)
    *  Dodge Magnum
    *  Dodge RAM (2001 - 2006)- Requires J1850 Adaptor
    *  Dodge RAM (2006 ?2012)
    *  Dodge Nitro
    *  Dodge Journey
    *  Dodge Journey (2011+)
    *  Chrysler 300C 2004+
    *  Chrysler 300C (2011+)
    *  Chrysler 300M - Requires J1850 Adaptor
    *  Chrysler Aspen (2007)
    *  Chrysler Pacifica (2007)
    *  Chrysler PT Cruiser (2002-2006) - Requires J1850 Adaptor
    *  Chrysler PT Cruiser (2006 +)
    *  Chrysler Voyager (-2007) - Requires J1850 Adaptor
    *  Chrysler Voyager 2007+
    *  Chrysler Town and Country (2007-2010)
    *  Jeep Commander 2005+
    *  Jeep Grand Cherokee (2002-2004) - Requires J1850 Adaptor
    *  Jeep Grand Cherokee 2005+
    *  Jeep Cherokee (2002-2006) - Requires J1850 Adaptor
    *  Jeep Cherokee (2007-2011)
    *  Jeep Cherokee (2011+)
    *  Jeep Liberty (2007-2010)
    *  Jeep Patriot (2007-2012)
    *  Jeep Compass (2007-2009)
    *  Jeep Wrangler (2007-2012)
    *  Jeep Laredo (2007-2011)
    *  Neon (1998-2005) - Requires J1850 Adaptor
    *  Volkswagen Routan (2009-2012)
    *  Mileage recalibration in Engine Control Unit SRI-3
    *  Mileage recalibration in Engine Control Unit SRI-4
    *  Mileage recalibration in Engine Control Unit SRI-5 (2006-2011)
    *  Mileage recalibration in Engine Control Units (SRI) all versions (2011+)
    *  PCM - EDC15C2 (2000-2005)
    *  Chrysler Crossfire (1999 with VDO dash)

    The special function Engine Control Unit Flasher can be used to read and write the Flash of Engine Control Units (also called Power Control Modules).For EDC15C2 Diesel Engine Control Units the software also supports reading the writing the complete EEPROM. Supported Engine Control Units





    Copyright£ºAutofocus Technology Co.,Ltd | Website£ºwww.ecufocus.com | E-mail£ºinfo@ecufocus.com Network
