    GM TECH2 TESTER
    Auto OEM Tester
    Print Page 】 【Close

    back

    GM TECH2 TESTER Tool

    The Tech-2
    is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2010

    Features:
    Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
    Support for on-board diagnostics on all GM systems 1992 thru current year.
    Removable hardware modules provide insurance against scan tool obsolescence.
    Large, easy-to-read backlit screen.
    RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
    Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
    Ability to view the status of vehicle diagnostic tests as they run.
    Bi-directional
    The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

    Vetronix Tech-2 Specifications
    Dimensions
    12" X 6" X 2"
    Microprocessor
    32 bit, 16 MHz
    Memory
    32 MB flash type II PCMCIA. Type III slot available for future expansion.
    Communications
    Integral RS232 communication port.
    Screen
    3.8" X 2.8" backlit monochrome with full graphics capability: 320 X 240 pixels. Displays up to 9 vehicle parameters at once

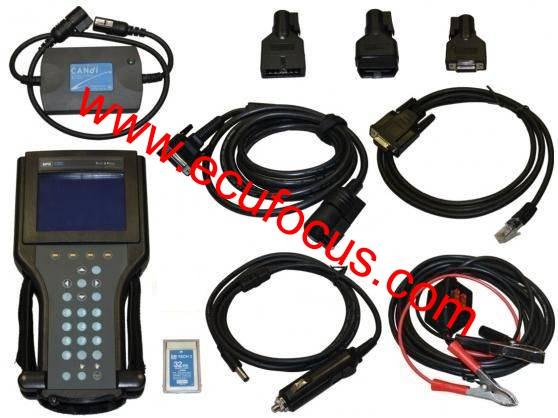

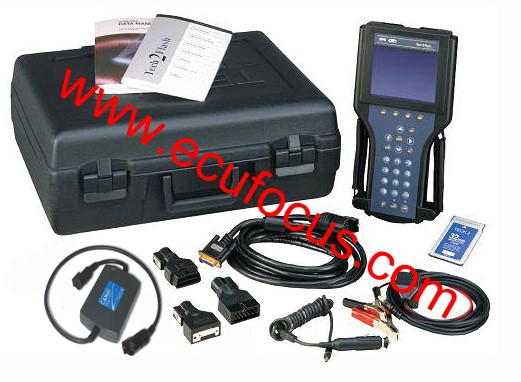

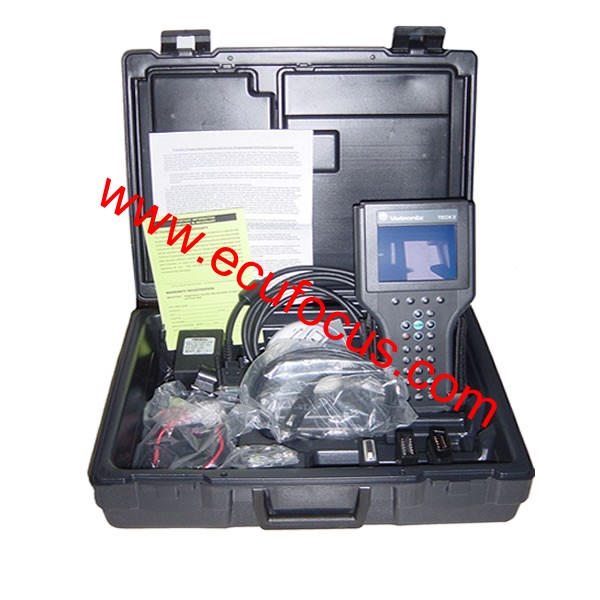

    GM Tech-2 Starter Kit with Candi Module Kit includes (All ORIGINAL and NEW!):

    Tech-2 Flash Tester
    32 MB PCMCIA Card with GM OE Applications
    CAN diagnostic interface module(CANdi) and instruction sheet download ( 199.2 kb )
    Data/Sensor/Trouble Code Manual
    DLC Cable, DLC Loopback Adapter
    12V Cigarette Lighter Power Cable
    SAE 16/19 Adapter
    NAO 12/19 Adapter
    Battery Power Cable
    Storage Case

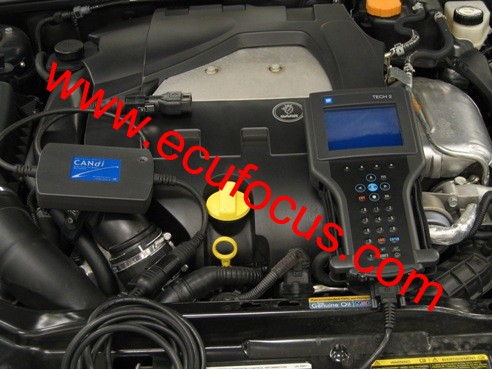

    An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flash's diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications, even those vehicles using other platforms such as OBD I and OBD II.
